The Submerged Pulse Valve offers proven, compact, and reliable performance, allowing low-pressure (0.2MPa) operation, explosion-proof options, and energy-efficient cleaning. The Right-Angle Valve ensures high efficiency and long life with its 90° design. The Large-Diameter Rotary Jet Valve, designed for high-volume applications, enables efficient, low-pressure cleaning with low maintenance, ideal for the power industry.

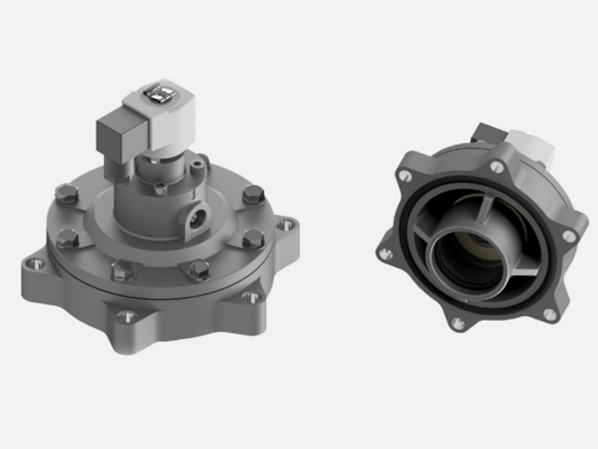

Proven technology, compact structure, robust and reliable performance, high-quality product. Highly efficient pulse-jet performance, extremely low pressure loss, minimum permissible air source pressure as low as 0.2MPa. Allowed for installation and use in environments with explosion-proof requirements by selecting an explosion-proof coil. It can be quickly converted into a pneumatic pulse valve by replacing the additional pneumatic control end cap. The electromagnetic pulse valve acts as the compressed air switch for the bag filter cleaning pulse-jet system, controlled by the output signal of the pulse-jet controller, cleaning the filter bags row by row (chamber by chamber) with pulse-jet cleaning, keeping the dust collector's resistance within the set range to ensure the dust collector's processing capacity and dust collection efficiency. The submerged electromagnetic valve pulse is directly mounted on the air tank, providing better flow characteristics and cleaning effect, reduced pressure loss, and energy savings, making it suitable for working environments with low air source pressure.

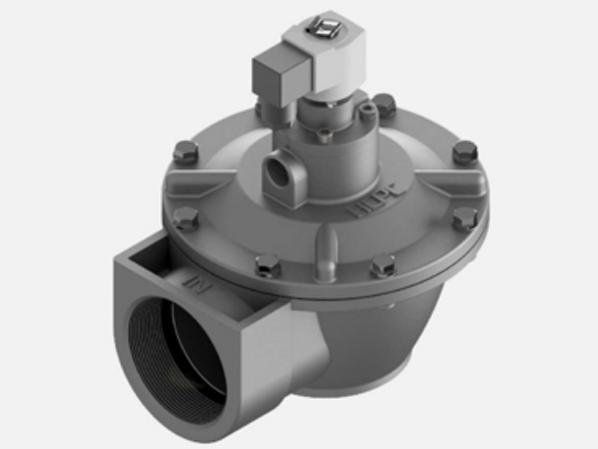

The right-angle solenoid valve pulse has a 90-degree angle between its inlet and outlet, making it suitable for all pulse jet or air-box dust collectors. It boasts the highest working efficiency and the longest service life.

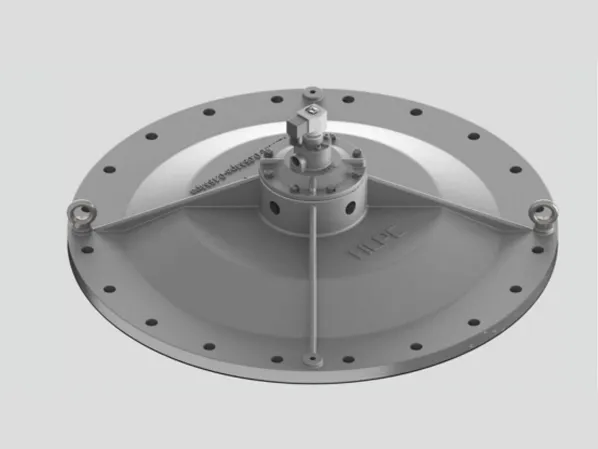

This is a submerged pulse valve specifically designed for rotary jet dust collectors. It is a normally closed two-way valve with inlet and outlet centerlines aligned and embedded in the air reservoir. Rotational jetting is achieved through a long-arm rotary nozzle. The rotary jet electromagnetic pulse valve utilizes a three-stage diaphragm structure to ensure matching of unloading and exhaust, and matching of charging damping. Currently, among baghouse dust collectors used in power plants, long-arm rotary nozzle baghouse dust collectors are highly popular in the power industry due to their suitability for handling large volumes of dust-laden gas, low pulse valve maintenance, high jetting volume, low pressure, and significant energy savings, and have broad development prospects.
